BP32F UV PRINTER
​
Small format and Endless applications

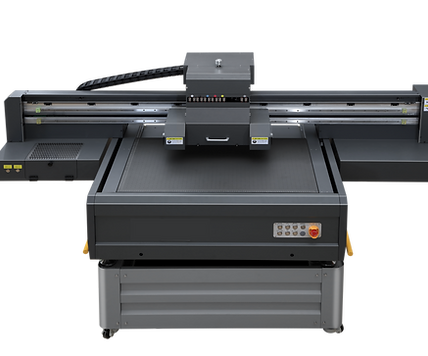

BP32F PRACTICAL FORMAT UV FLATBED PRINTER [3'X2'] FOR RIGID MEDIA SUBSTRATES WITH ROTARY ATTACHED
Ready to Work
TECHNICAL DATA
PRINT HEAD CONFIGURATION
RICOH G5i-3.5PL
(3 PRINT HEADS) W + COLOR + COLOR
RICOH G5i-3.5PL
(3 PRINT HEADS) W + COLOR + V
High Speed Mode
​
​
Standard Mode
​
​
High Quality Mode
720x600 dpi 4pass
82 ft²/h (7.7 m²/h)
​
720x900 dpi 6pass
51 ft²/h (4.8 m²/h)
​
720x1200 dpi 8pass
37.6 ft²/h (3.5 m²/h)
​
720x600 dpi 4pass
150 ft²/h (14 m²/h)
​
720x900 dpi 6pass
99 ft²/h (9.2 m²/h)
​
720x1200 dpi 8pass
72 ft²/h (6.7 m²/h)
​
​
PARAMETERS
Print Head: RICOH G5i
​
Print Technology: Industrial Piezoelectric Inkjet
​
Ink Types: Environmental Protective UV Ink
​
RIP Software: Photoprint, Maintop, Printer factory
​
Color Configuration: 4Color / 6Color / White / Varnish
​
Operating System: Win 7/10 64bits
​
Image Format: TIFF /JPEG / EPS / PDF
​
Print Head Height: Up to 33.4"
​
Media Type: Wood, Metals, Doormats, Paperboard, Expansion sheet,
Ceiling panel, Glass, Ceramics, Coroplast, etc.
​
Printing Width: 3 ft x 2 ft
​
Maximum Weight of Material: 30 lb/ft
UV Curing Lamp: LED Water cooling system
​
Access Parameter: AC 220V (+-5%) 50HZ / 60HZ 20A
​
Humidity: 35-80% RH (no condensing)
​
Temperature: 25 - 32° C (77 to 90F)
​
Machine Dimension / Weight: 112" x 47" x 51" / 881lb
​
Package Dimension / Weight: 113” x 75” x 60” / 993lb
​
​
​
​
​
RICOH GEN5i High Performance Printer Head
It is a compact printhead with 320 x 4 rows of 1,280 nozzles*. In addition, high-definition printing of up to 1,200 dpi can be achieved by jetting fine droplets
PRINT HEAD
SOME FEATURES
Ecological Curing System
Preservation of the environment is a plus in UV technology, since it doesn't produce volatile organic compounds VOCs.
High and anti-collision automatic sensors
Speeding up the printing process for different material thicknesses and Protecting Printheads from Impact and crushing
Industrial grade heavy mechanical structure
Structure with more support points to guarantee the quality of the machine. Resistance to long working hours and support of heavier materials.
Adjustable height, up to 3.2"
Don't limit yourself, print on a wide variety of materials
Durable parts for industrial production
Emergency stop switches on the machine make it easy to stop operation from any corner of the printer
APPLICATIONS
TECHNICAL SUPPORT
We offer a 1 year warranty on all our UV Flatbed Printing Systems.
For any factory defect. Does not include consumables (inks, print heads)​
It has: Assistance for training, resolution of frequently asked questions, and diagnosis and solution of problems remotely through our Support Center.​
Our team of Specialized Technicians at your service!
